- It is well known that heat stressed cows feed consumption are decreasing accordingly, milk and meat performances are also decreasing.
- Cows do not like to lie on wet grounds and as result their lying duration is decreasing. Serious complications occur of cow’s health that are standing for long period or lying on wet ground.
- Serious lung diseases occur in barns with poor air circulation.
- Wet and slippery barn floors cause serious hoof treatments and accidents
your cows are always at the right ambient temperature, on dry ground and in fresh air.
Cows are always with our helicopter and vertical type ventilation at the right temperature, on dry grounds and in fresh air.
Suitable for all type of barns with different wing sizes and engine power alternatives.
Low electricity consumption with special designed wing and electric engine.
With its special wing design, it operates without creating sound pollution (low decibel) in the barn.

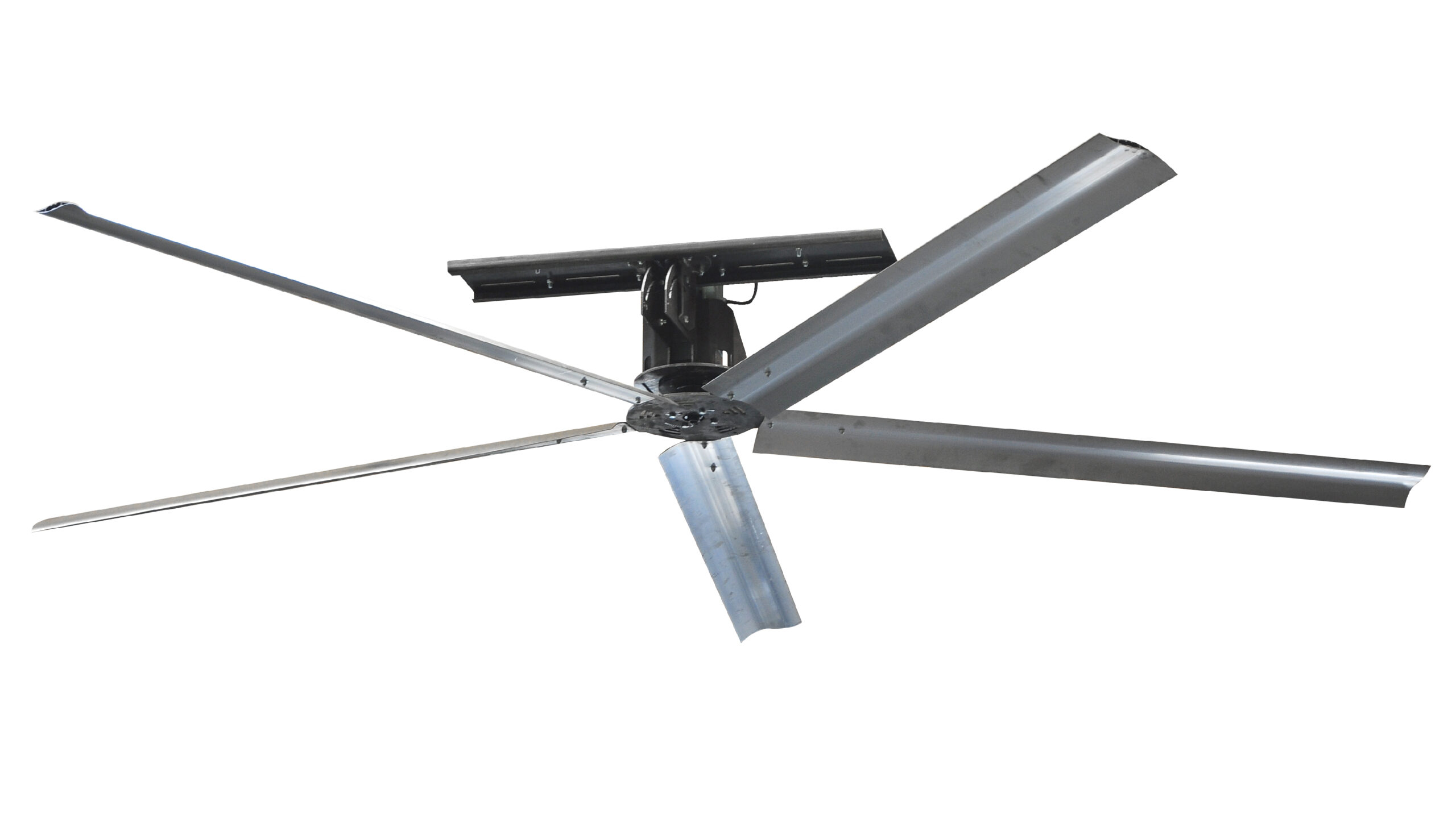

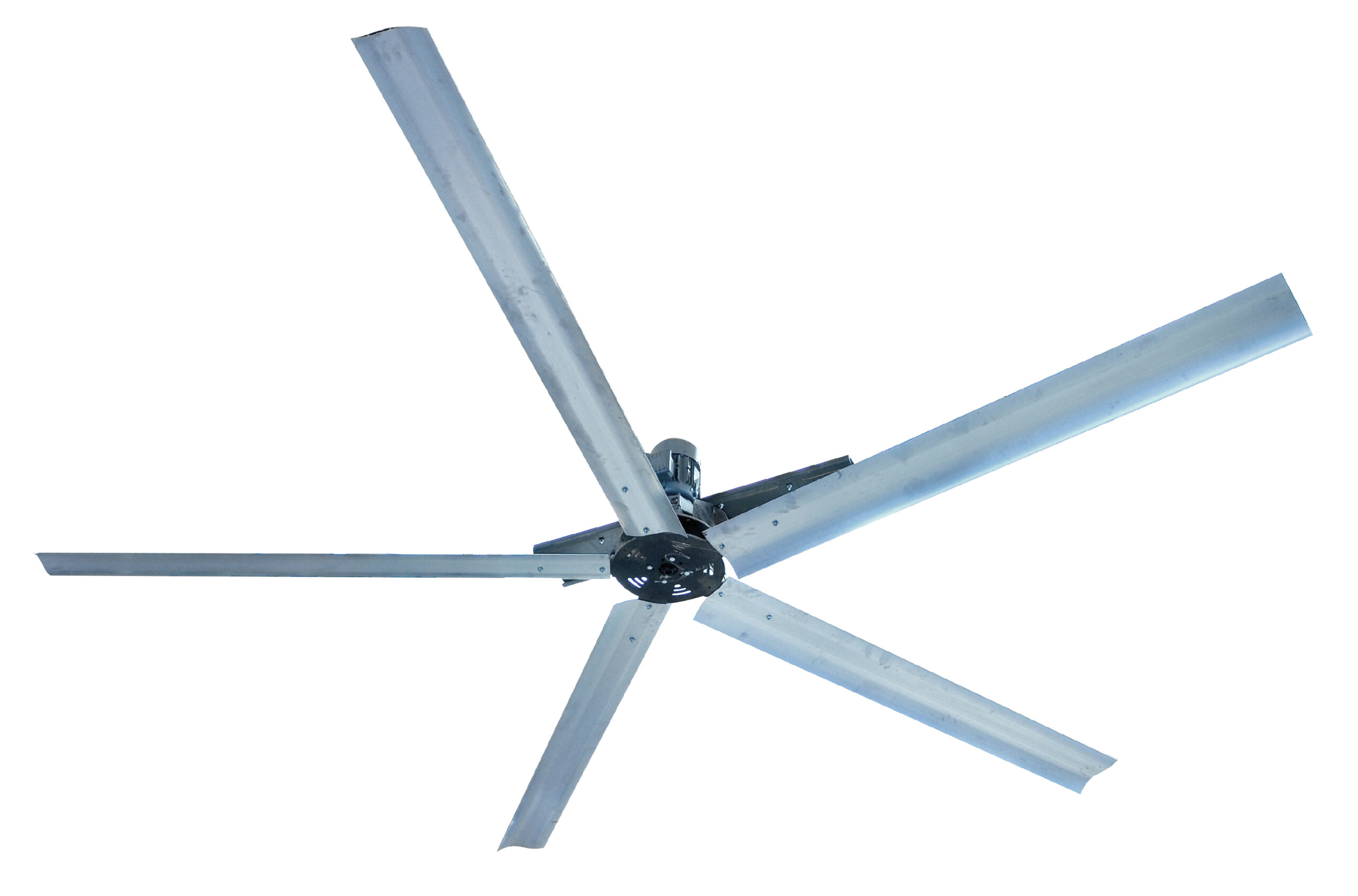

HELICOPTER FAN
Advantages
Contributing to increasing milk productivity
Decreasing heat stress and increasing feed consumption
With fresh air less humidity, less methane gas and less lung disorders
With dry lying areas, floors more healthy teats, longer laying durations and less hoof diseases
Features
Low energy consumption with lightweight wing design
With ergonomic wing structure no sound pollution in the barn
Adjustable fan rotation speed feature in different ambient temperature for optimum cooling and energy saving
Maximum effect area
Multi-purpose use
Fan Diameter (m) 4 5
Number of Wing 5 5
Effect Area (m) 16 20
Installation Height (m) 4.5
Maximum Speed (min¯¹) 80 – 90
Electric Motor (kW) 1.1
Helikopter Fan Download

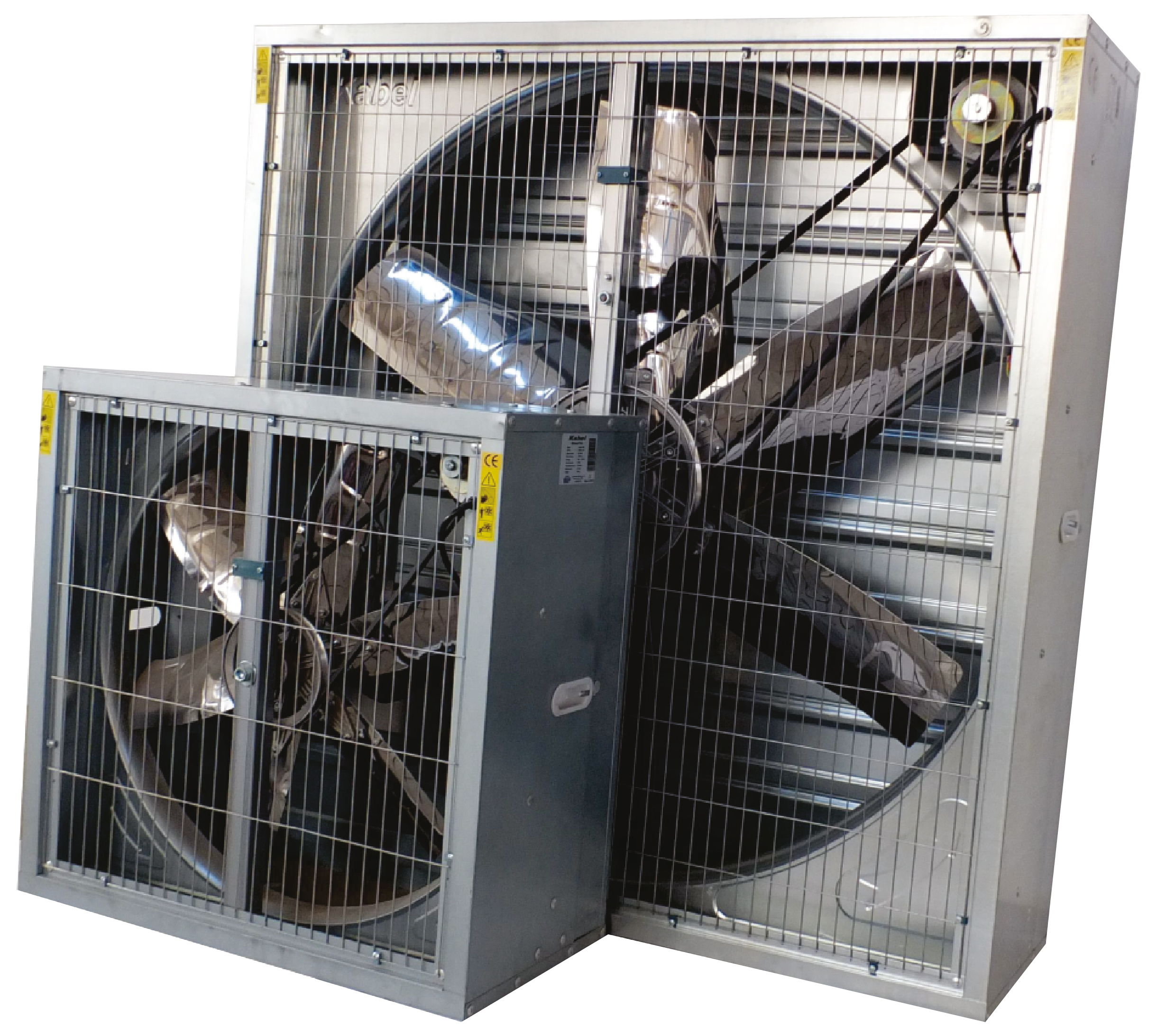

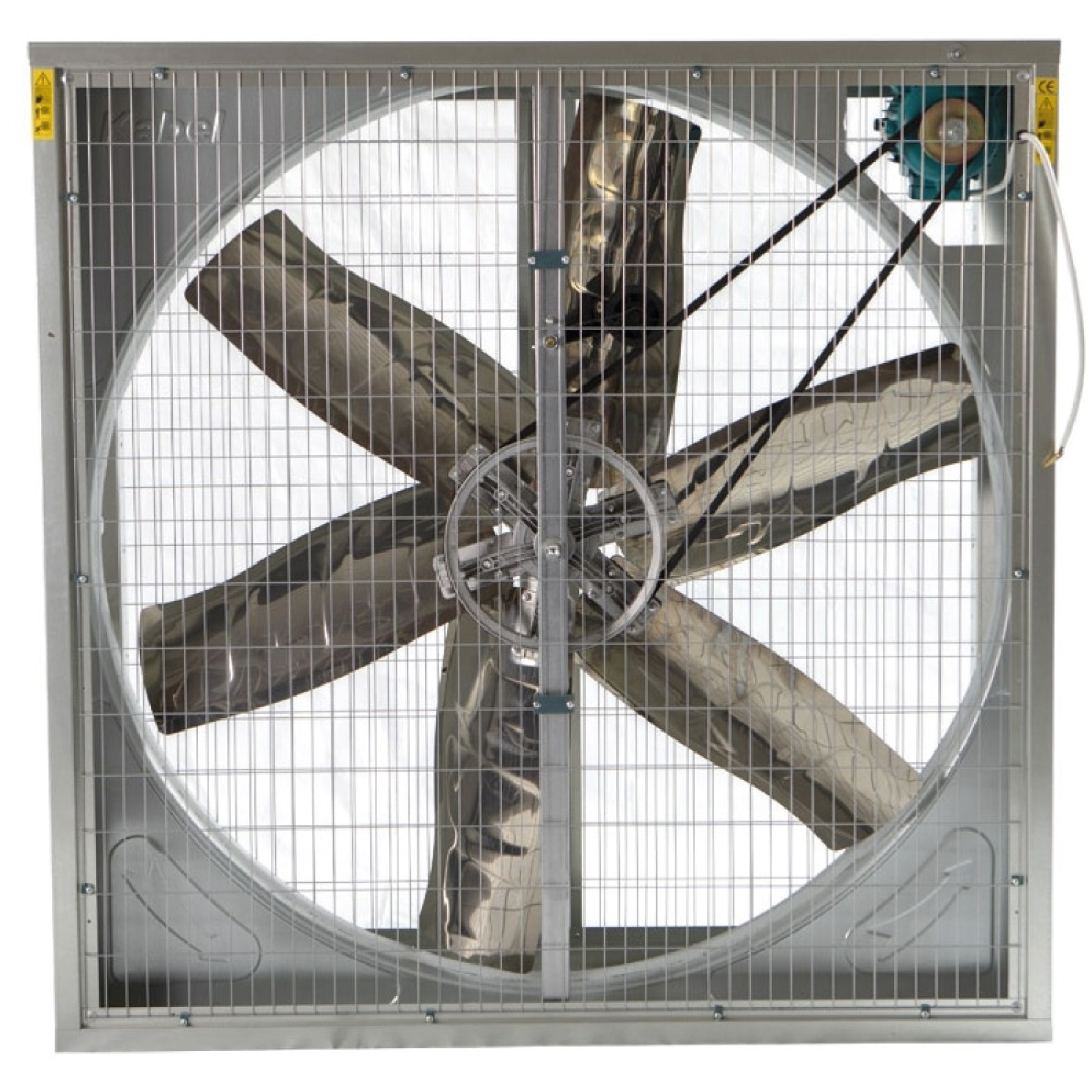

FAN
Advantages
High milk performance even hot weather
Decreasing heat stress and increasing feed consumption
With fresh air less humidity, less methane gas and less lung disorders
With dry lying areas, floors more healthy teats, longer laying durations and less hoof diseases
Features
High impact area with strong air flow high effect area
Resistant construction for farms heavy conditions
Statically and dynamically balanced propeller
Use friendly with low energy consumption
Air Flow Rate (m³/h) 44500
Fan Diameter (mm) 1250
Sound <65dB
Voltage (V) 220 – 380
Engine Power (kW) 1.1
Fan RPM 1440
Dimensions (mm) 1400x1400x300
Weight (kg) 68
Fan Blade Material Stainless Stell
Vertical Fan Download
